2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure

2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure
2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure
2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure
2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure
2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004277
Based on 3 review(s) - Write a review
€5.50
Ex Tax: €4.55
10 or more €5.25
20 or more €5.00
50 or more €4.75
100 or more €4.50
Add to Cart
Add to wishlist

A compact but powerful amplifier with Bluetooth.

Please login or register to review

Reviews Over 2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure

This product has 3 review(s) in total.

Tags: 2x30W Audio Amplifier - Bluetooth 5.0 - met Enclosure , TPA3110BTCASE , Amplifiers

Specifications

General
Brand No brand
Features Audio amplifier
Enclosure
General physical appearance
Main color Black
Weight [g] 21
Dimension X [mm] 50
Dimension Y [mm] 33
Dimension Z [mm] 16
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 8
Maximum supply voltage [V DC] 24
Wireless communication
Interface(s) Bluetooth
Bluetooth version 5.0
Supported Bluetooth standard(s) Classic
Audio amplifier
Amplifier class D
Number of (normal) channels 2
Number of subwoofer channels 0
Amplifier HMI Volume
Pause/play
Next/previous
Maximum power per (normal) channel [W] 30
(@24V 8Ω)
20
(@20V 8Ω)
15
(@16V 8Ω)
10
(@12V 8Ω)
16
(@12V 4Ω)
(Note: Above 20W requires cooling with heatsink)
Minimum speaker impedance per (normal) channel [Ω] 4
Maximum speaker impedance per (normal) channel [Ω] 16
Connectors
Power supply connector(s) Screw terminal
Speaker connector(s) Screw terminal
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material PMMA

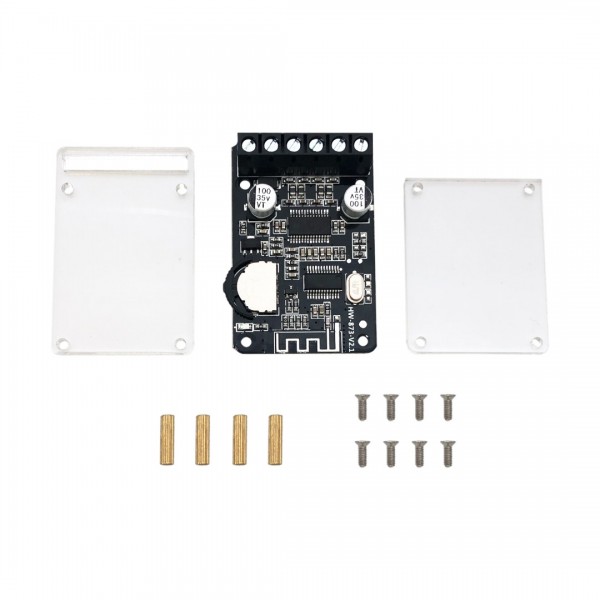

Package contents
Package contents 1x audio amplifier
1x Top enclosure
1x Bottom enclosure
4x Spacer
8x Enclosure mounting bolt

Product FAQ

What power supply do I need?

Use a stable, CE-approved power supply with the correct voltage and sufficient power. It is recommended to use a power supply with a bit more power than the amplifier to provide headroom for current spikes.
