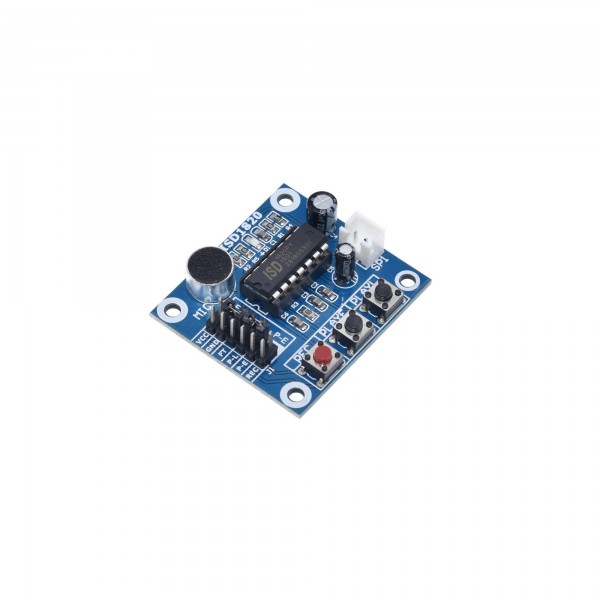

Voice Recording Module with Speaker - ISD1820

This module makes it possible to easily record your voice for 10 seconds and play it back.

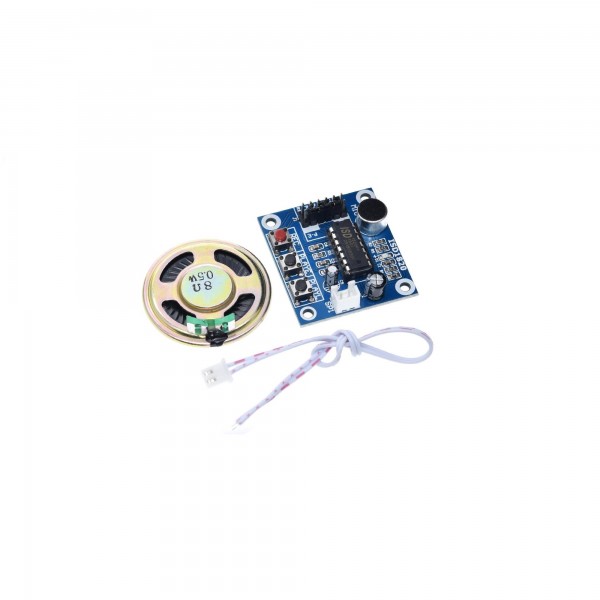

The module comes with a speaker so that you immediately have sound, but can also be used as a megaphone module for example.
There is an LED on the module that lights up when you record.

Specifications:

• Input voltage: 3-5V DC
• Chip: ISD1820
• Record time: 10s
• Dimensions PCB (LxWxH): 38x42.5x11.5mm
• Speaker diameter: 40mm

Buttons:

• REC: Press and hold to start recording, stops when released.
• PLAYE: Press once to play full recording.
• PLAYL: Hold to play the recording, stops when released.

Pinout:

• VCC: Input voltage
• GND: Ground/min

This tutorial explains how the more extensive functions work
