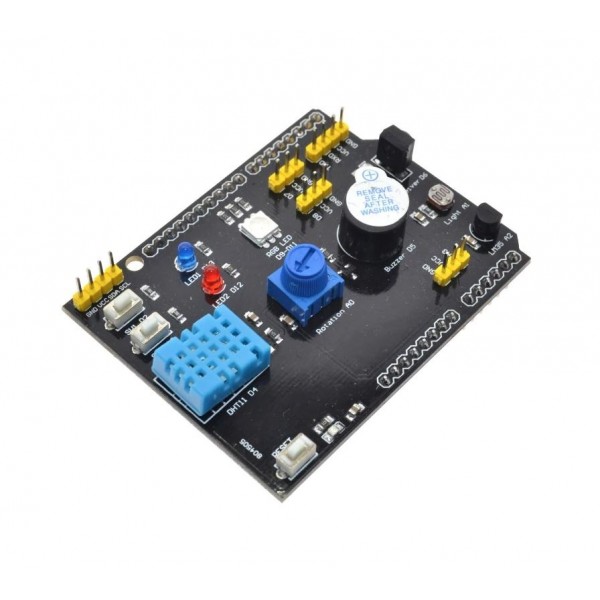

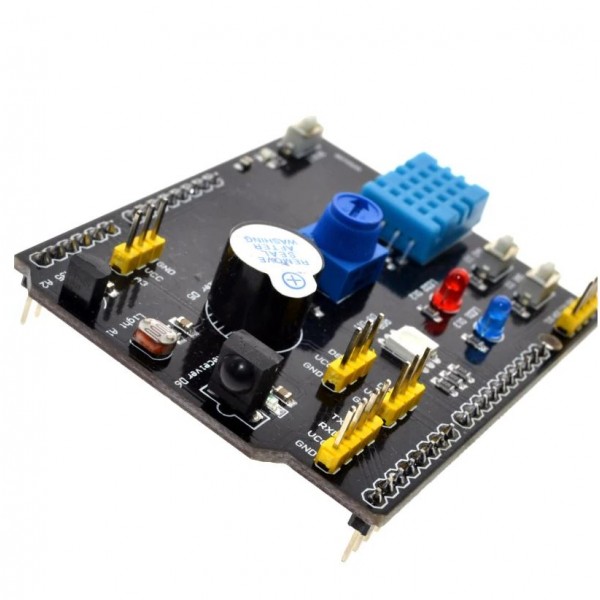

9 in 1 Sensor Shield - for Arduino Uno - Mega - Leonardo

This 9 in 1 Sensor Shield has 9 different sensors with buttons and handy I2C and UART connections. This shield also contains a reset button.

Specifications:

• Suitable for Uno, Mega, Leonardo and other 5V Arduino's using the Uno R3 pin layout
• Operates on 5V
• Has several parts to learn the basics with Arduino
• Handy I2C and UART (RX/TX) pins available

The following parts with indicated pins are present on this shield (also shown on the PCB):

• LED1 (blue): D13
• LED2 (red): D12
• SW1 (button): D2
• SW2 (button): D3
• DHT11 (temperature and humidity sensor): D4
• Buzzer*: D5
• IR Receiver: D6
• RGB LED: D9, D10 and D11
• Potentiometer: A0
• LDR (light sensor): A1
• LM35 (temperature sensor): A2
• 2 Digital ports: D7 and D8
• 1 Analog port: A3
• I2C port: SDA A4, SCL A5
• UART port: TXD and RXD

*Note: The shield comes with an active or passive buzzer.
