LDO Orbiter Extruder V2.0 - Dual Drive

Availability: Directly available from warehouse in Eindhoven
SKU: 004882

Based on 1 review(s) - Write a review

€62.00

Ex Tax: €51.24

Qty

Add to Cart

Add to wishlist

Only 2 pieces in stock

Description
Reviews

This lightweight extruder is ideal for a direct drive setup. Because of the planetery gearbox, despite the small Nema 14 pancake stepper motor, it is a powerful extruder. The Orbiter 2.0 is lighter, more powerful and more compact than the Orbiter 1.5. In addition, it is better suited for printing TPU, and comes with original Bondtech drive gears.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over LDO Orbiter Extruder V2.0 - Dual Drive

Average Rating:

This product has 1 review(s) in total.

Tags: LDO Orbiter Extruder V2.0 - Dual Drive , LDO-ORBITER-V2.0 , Hotends and Extruders

Specifications

General
Brand	LDO
Norm conformity	RoHS CE
Features	Motor Extruder
General physical appearance
Main color	Black
Weight [g]	135 (without cable) 152 (with cable)
Mounting options	Mounting hole(s)
Form factor	NEMA14
Filament
Diameter [mm]	1.75
Actuator
Actuator type	Stepper motor
Step angle [°]	1.8 (±5%)
Minimum motor voltage [V DC]	2.1
Maximum continuous RMS current per phase [A]	1
Phase resistance [Ω]	2.1 (±10%)
Phase inductance [mH]	1.6 (±20%)
Insulation class	H
Connectors
Motor connector(s)	JST-XH (compatible) female
Wire/cable
Wire/cable length [m]	1
Package contents

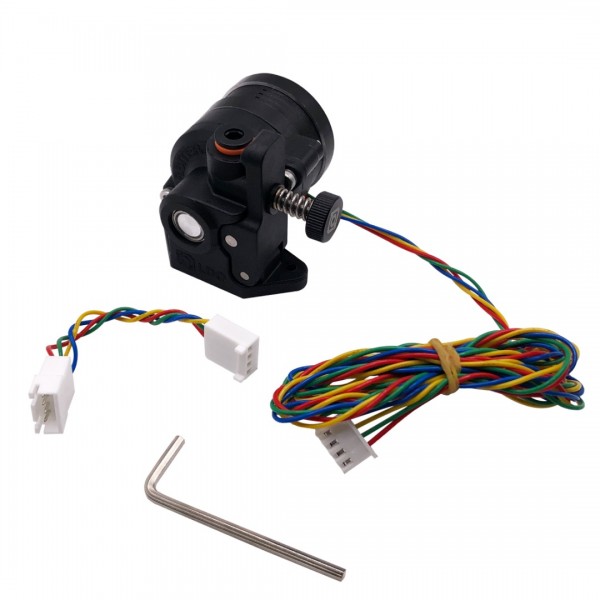

Package contents	1x Orbiter Extruder V2.0 1x Adapter cable 1x Allen key
