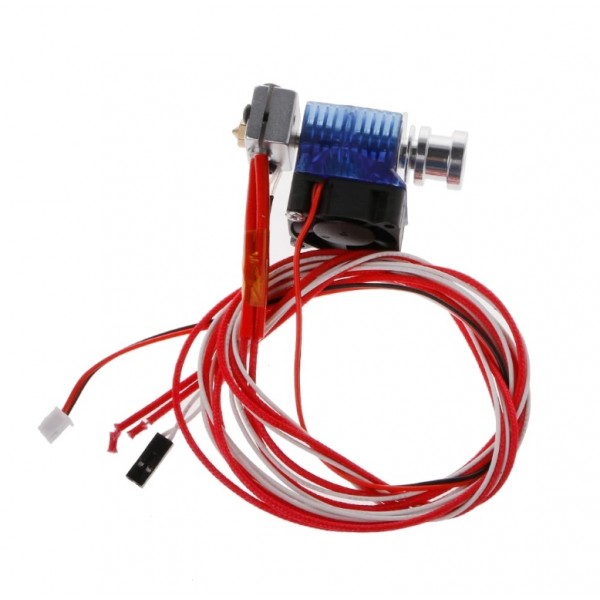

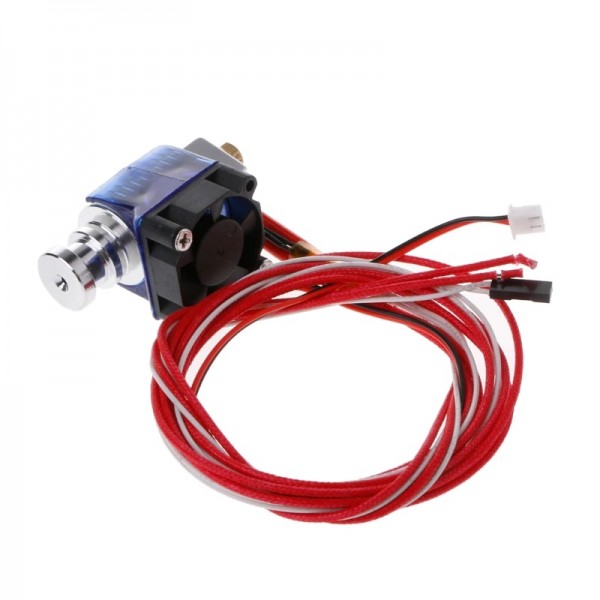

Hotend V6 - Direct Drive - 1.75mm - 12V- E3D Compatible

Complete direct drive hotend for a 3D-printer. This hotend is suitable for 1.75mm filament.

Specifications:

• Heater cartridge:
  • Supply voltage: 12V DC
  • Maximal current: 2.5A
• Thermistor: NTC 3950 100kΩ
• Nozzle:
  • Material: Brass
  • Model: V6
  • Diameter: 0.4mm
• Ventilator:
  • Dimensions: 30x30x10mm
  • Supply voltage: 12V DC
• Heatbreak type: All-metal
• Maximal temperature: 260°C (when heatsink is properly cooled)

Package contents:

• 1x Hotend V6
• 1x Fan with duct
• 1x Thermistor NTC 3950
• 1x Heater cartridge 12V
• 1x V6 nozzle, 0.4mm

Note: This hotend is not well suitable for printing PLA because of the all-metal heatbreak.

Note: Sometimes, this hotend is already assembled, but you should always check if everything is tighened properly.

Note: Sometimes the wires of the thermistor on the heating block are fastened too tight, this can cause a short circuit. Always check this to ensure a correct temperature display.
