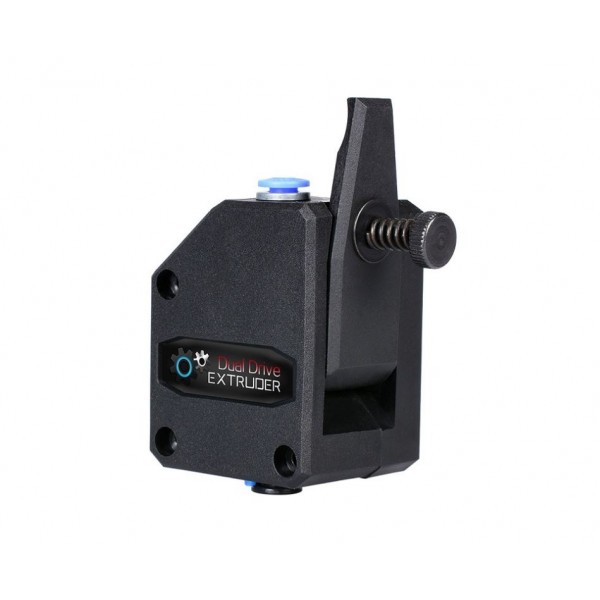

Dual Drive Gear Extruder - 1.75mm - BondTech Compatible

Dual Drive Gear Extruder for 3D printers. This is an upgrade to the original plastic extruder included with most 3D printers. This extruder has a double drive for trouble-free material feeding, so that the filament will no longer slip. In addition, it is possible to tighten the gears on the filament with a screw.

Specifications:

• Suitable as a direct drive for E3D hot ends
• Suitable for PTFE tube diameter: 2x4mm
• Suitable filament diameter: 1.75mm
• Includes mounting hardware and bracket for mounting a NEMA17 stepper motor

Package contents:

• 1x Dual Drive Extruder
• 1x Bracket for NEMA17 stepper motor
• 1x Assembly manual
• Mounting material:
  • 2 Different allen keys
  • 3x Bolt for attaching the NEMA17
  • 1x Pulley for the shaft of the NEMA17 to drive the extruder
  • 1x PTFE Tube (~10cm)

Watch an installation video here to replace an E3D direct drive: Installation Video DDG Extruder

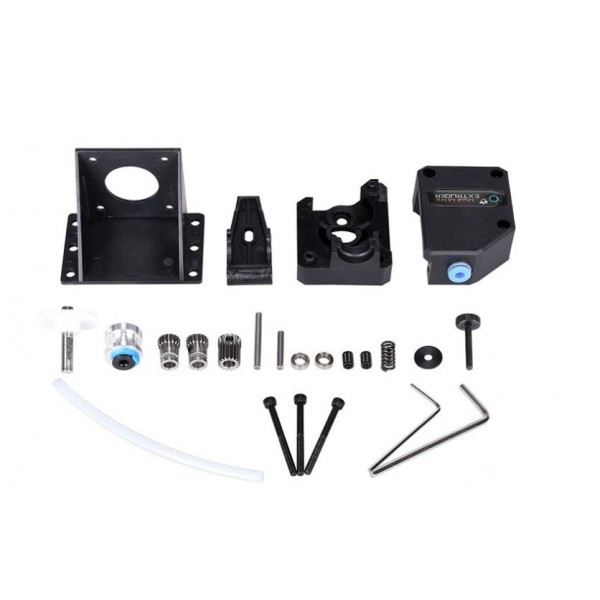

Note: On the last image the extruder is completely apart, however the extruder will be delivered pre-assembled.

Note: This is a BondTech Compatible extruder.
