BIGTREETECH Volcano Hotend V6 - Bowden - 1.75mm - 12V - E3D Compatible - DIY Kit

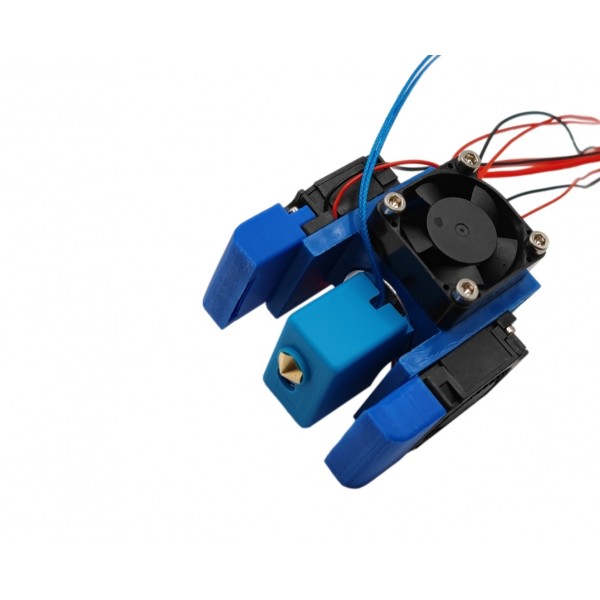

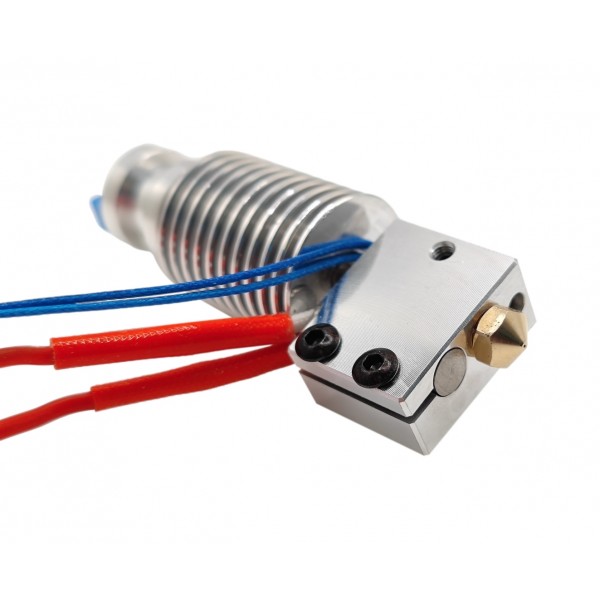

Complete hotend with fans for a 3D printer. The hotend is well suited for high speed printing due to the longer melting zone. Keep in mind that this also creates more stringing than with a standard V6 hotend.

Specifications:

• Suitable filament diameter: 1.75mm
• Heating element:
  • Voltage: 12V DC
  • Maximum power: 40W
  • Connector: Loose wires
• Thermistor:
  • Type: NTC 100kΩ
  • Connector: Loose wires
• Nozzle:
  • Diameter: 0.4mm
  • Material: Brass
  • Model: V6 Volcano
• Fans:
  • 1x Standard fan
  • 2x Blower fan
  • Voltage: 12V DC
  • Connectors: JST-XH 2p
• Type of heat break: All-metal*
• Maximum temperature: 285°C (if fan cools down heatsink!)

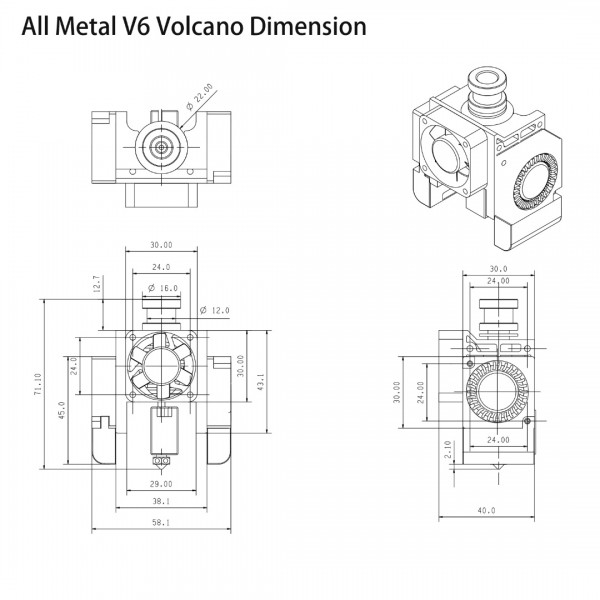

• Dimensions: See images

Package contents:

• See images

*Note: This hotend is not well suited for printing PLA due to the all-metal heatbreak.

Note: This hotend is delivered in separate parts and must therefore still be assembled.
