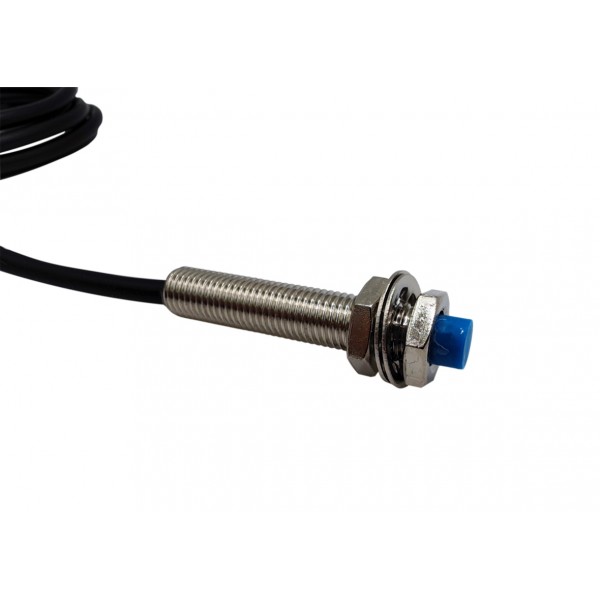

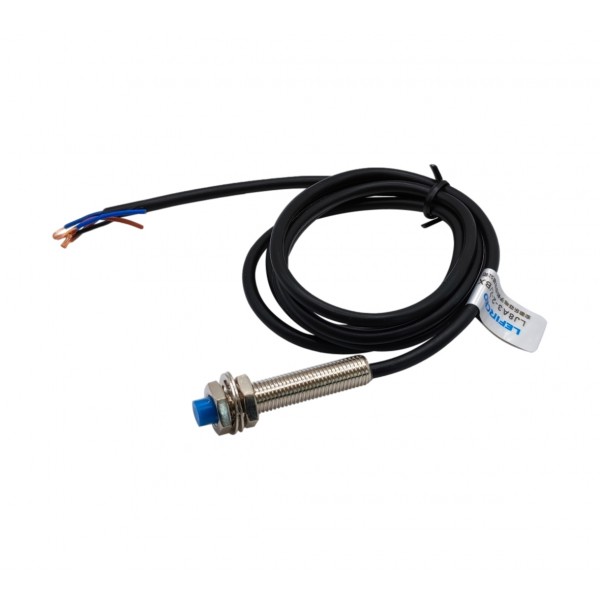

LJ8A3-2-Z/BX Proximity Sensor - 2mm - M8

An inductive proximity/distance sensor that can detect metallic objects at close range. As soon as a metal object is detected, the signal wire and ground are connected with a transistor. If no object is detected, the signal wire takes the voltage of the power supply through the built-in pull-up resistor. For example, the sensor can be used in 3D printers.

Specifications:

• Supply voltage: 6 - 36V DC
• Signal voltage: 6 - 36V
• Maximum signal current (sink): 200mA
• Measuring range: 0 - 2mm
• Output type: NPN NO (normally open)
• Internal pull-up resistance: 10kΩ
• Measuring method: Inductive
• Cable length: ~1m
• Thread: M8
• Dimensions: 8 x 8 x 45mm

Pinout:

• Brown: Supply voltage/+
• Blue: GND/Ground/-
• Black: Signal output

Package contents:

• 1x LJ8A3-2-Z/BX Proximity Sensor
• 2x Nut M8
• 2x Spring washer

Note: The sensor only works with metals, so not with glass or plastic, for example.
