BIGTREETECH SFS V2.0 - Smart Filament Sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 005712

Based on 0 review(s) - Write a review

€16.00

Ex Tax: €13.22

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

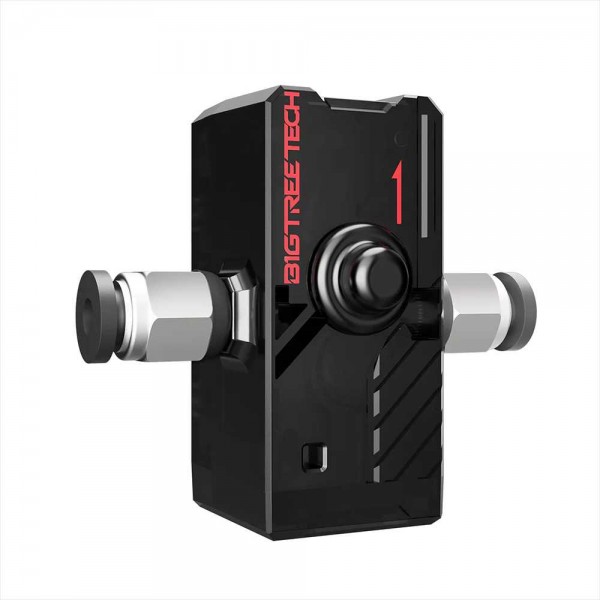

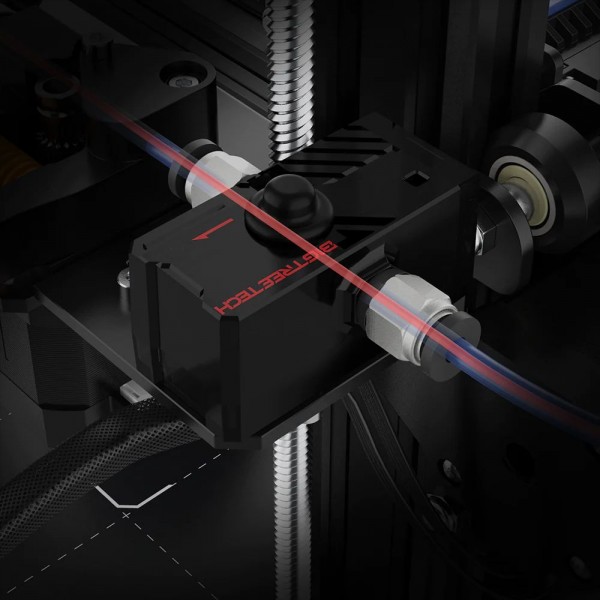

BIGTREETECH's SFS V2.0 uses both an optical rotary encoder and a microswitch to detect all filament jams and runouts. In addition, the V2.0 is lighter, more compact and easier to mount with M3 bolts. This sensor can be used with Marlin, Klipper and RepRapFirmware.

See the following page for more information: GitHub

Please login or register to review

Reviews Over BIGTREETECH SFS V2.0 - Smart Filament Sensor

Average Rating:

This product has 0 review(s) in total.

Tags: BIGTREETECH SFS V2.0 - Smart Filament Sensor , BTT-SFS-V2.0 , Accessories

Specifications

General
Brand	BIGTREETECH
Manufacturer model/SKU	SFS-V2.0
Norm conformity	RoHS CE FCC
Minimum operating humidity [%R.H.]	10
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	50
General physical appearance
Main color	Black
Weight [g]	36

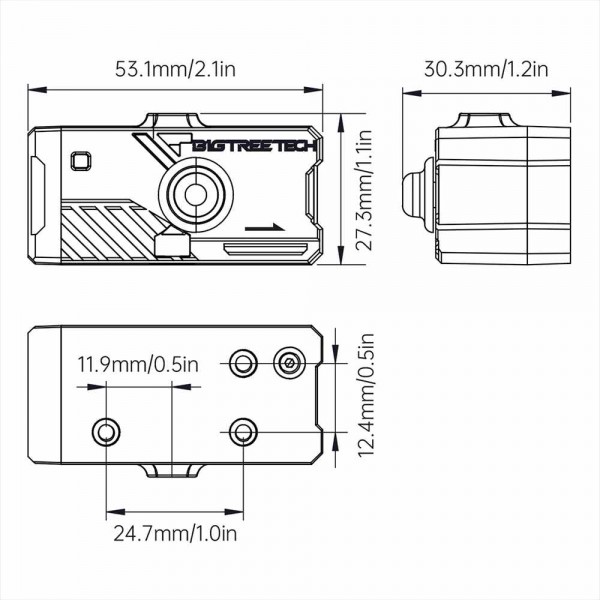

Dimension X [mm]	54
Dimension Y [mm]	31
Dimension Z [mm]	28

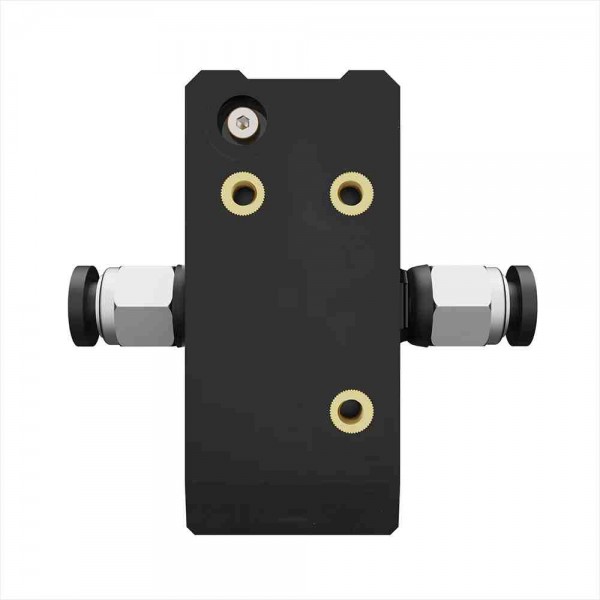

Mounting options	Screw thread
Thread size	M3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	Equal to supply voltage
Filament
Diameter [mm]	1.75
Communication
Hardware interface(s)	Digital
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents

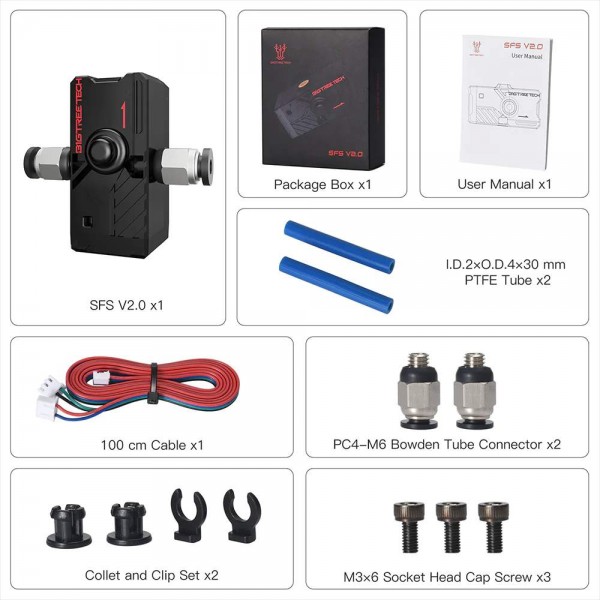

Package contents	1x SFS V2.0 1x 100cm 4p to 2x3p cable 2x PC4-M6 connector 2x PTFE tube 4x30mm 2x 3x M3x6 mounting bolt 1x Manual
