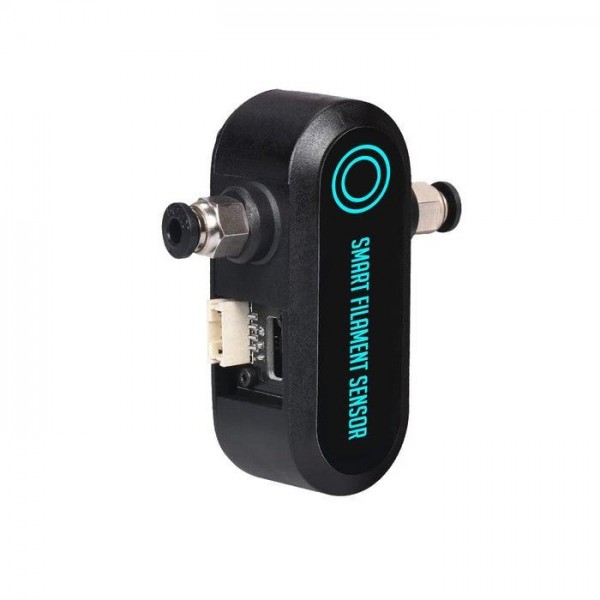

BIGTREETECH SFS V1.0 Smart Filament Sensor

This smart filament sensor can be directly connected to most BigTreeTech boards, such as the SKR 2.0 and the OCTOPUS V1.1 boards. You can use the smart filament sensor to detect your filament jams and of course the end of a filament roll. This sensor is supported by Marlin 2.0.X, among others.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Detection length filament: 7mm
• Suitable filament diameter: 1.75mm
• Connector: JST-PH 4p

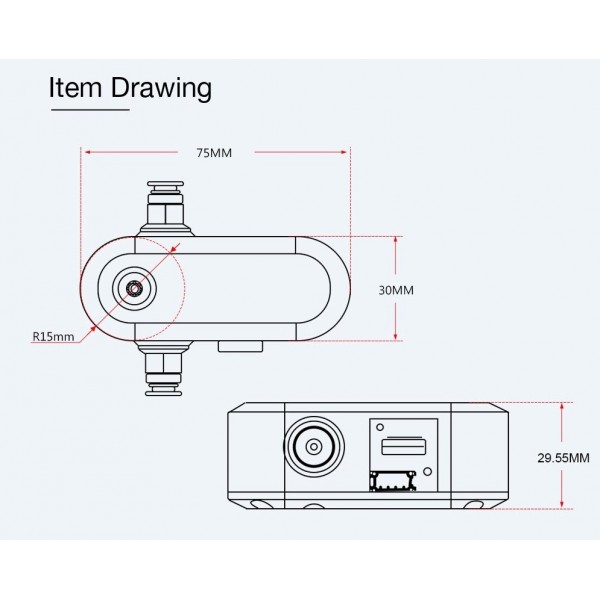

• Dimensions: See images

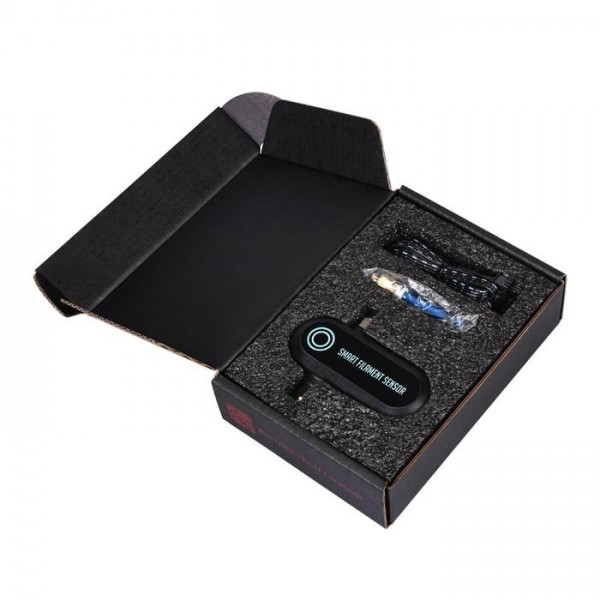

Package contents:

• 1x Smart Filament Sensor V1.0
• 1x JST-PH 4p to JST-XH 3p connection cable
• 1x PTFE Tube ~46mm
• 1x Coupler M6
• 2x M3 Bolt
• 2x M3 Washer

See the following page for more information: BIGTREETECH Smart Filament Sensor V1.0
