BIGTREETECH ADXL345 Digital 3-axis Accelerometer V1.0

Availability: Directly available from warehouse in Eindhoven
SKU: 005538

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

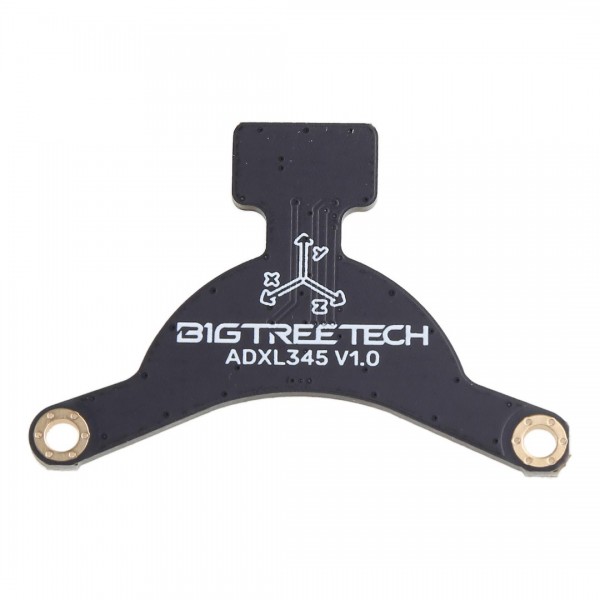

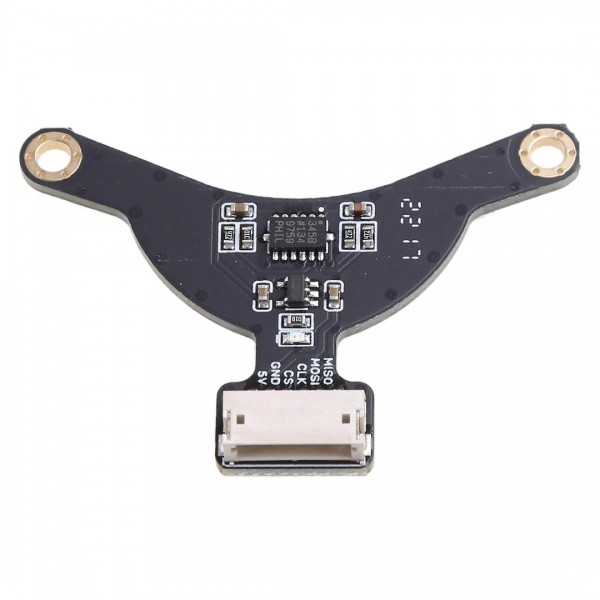

The ADXL345 is a small, low power, 3-axis accelerometer with high resolution. This module is made to mount on the back of a round NEMA14 stepper motor, these motors are often used as extruder motors.

Please login or register to review

Reviews Over BIGTREETECH ADXL345 Digital 3-axis Accelerometer V1.0

Average Rating:

This product has 0 review(s) in total.

Tags: BIGTREETECH ADXL345 Digital 3-axis Accelerometer V1.0 , BTT-ADXL345-V1.0 , Accessories

Specifications

General
Brand	BIGTREETECH
Manufacturer model/SKU	ADXL345
Model revision	V1.0
Minimum operating temperature [°C]	-45
Maximum operating temperature [°C]	85
Features	Acceleration sensor
General physical appearance
Main color	Black
Weight [g]	5

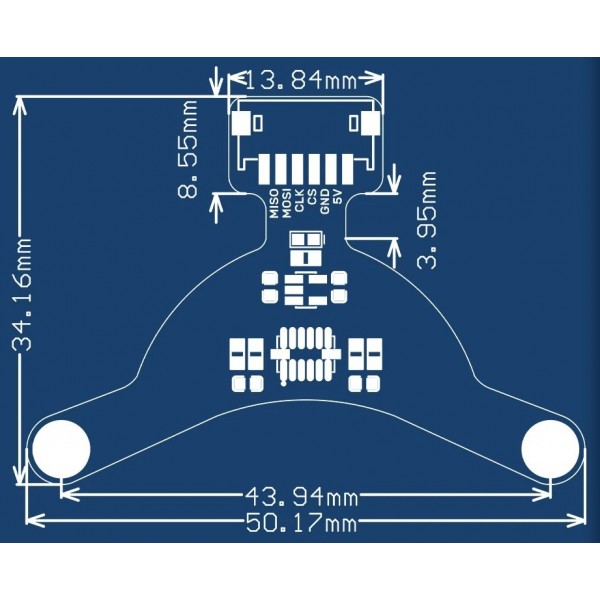

Dimension X [mm]	50
Dimension Y [mm]	34
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	1.8
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Acceleration sensor
Sensor chip/SoC	ADXL345
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	13
Connectors
Power supply connector(s)	JST-ZH (compatible) male
IO-connector(s)	JST-ZH (compatible) male
Wire/cable
Wire/cable length [m]	0.7

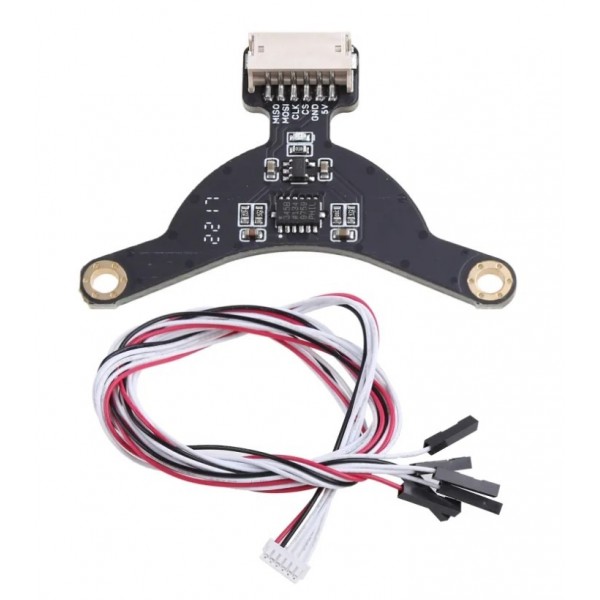

Package contents
Package contents	1x ADXL345 accelerometer module 1x JST-ZH to DuPont female cable 6p
