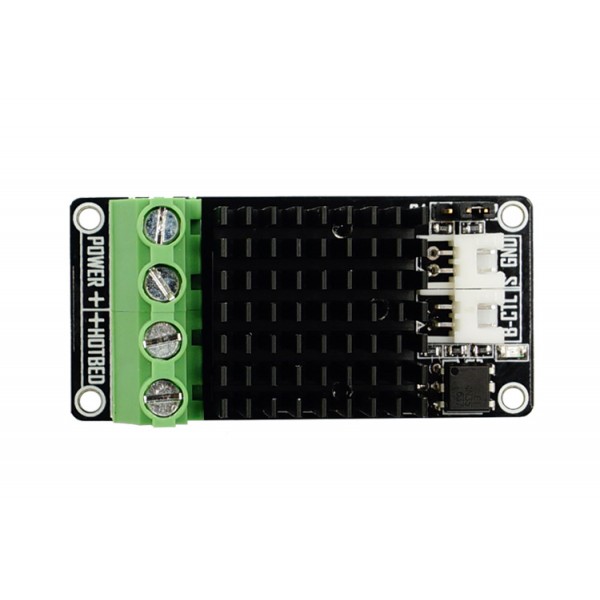

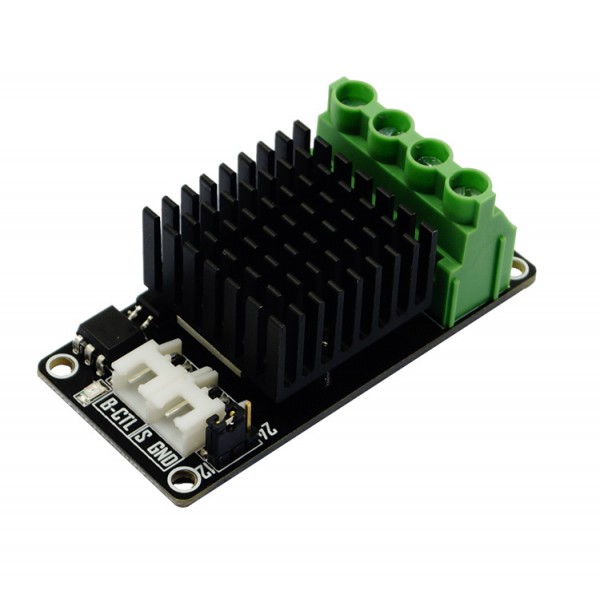

3D Printer High Power Mini MOSFET 30A - for Heated Bed or Hotend

This is a high power MOSFET module specifically intended for 3D printers. The module can be connected to a heated bed or hotend and can handle a PWM signal.

Specifications:

• Input voltage: 12-24V DC
• Maximum current: ~30A
• Signal (PWM) voltage: 5-24V

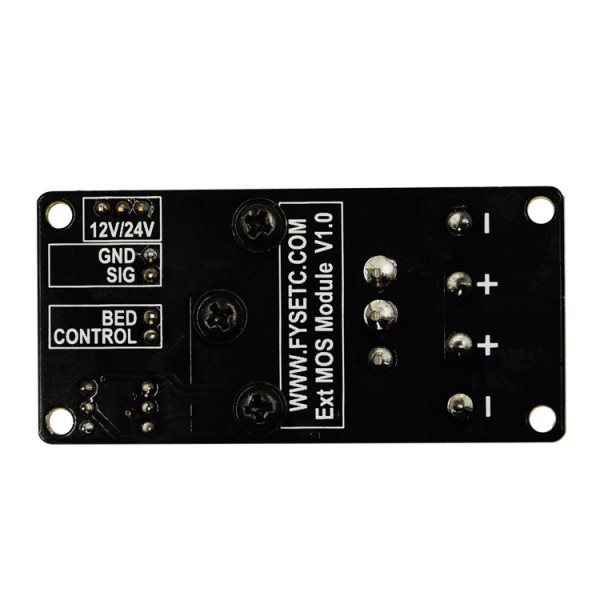

• Possibility to connect the heated bed output signal of your 3D printer motherboard to this module (BED on the PCB)
• Possibility to control the module with a digital signal (SIG on the PCB)
• Has four holes of 3mm for mounting

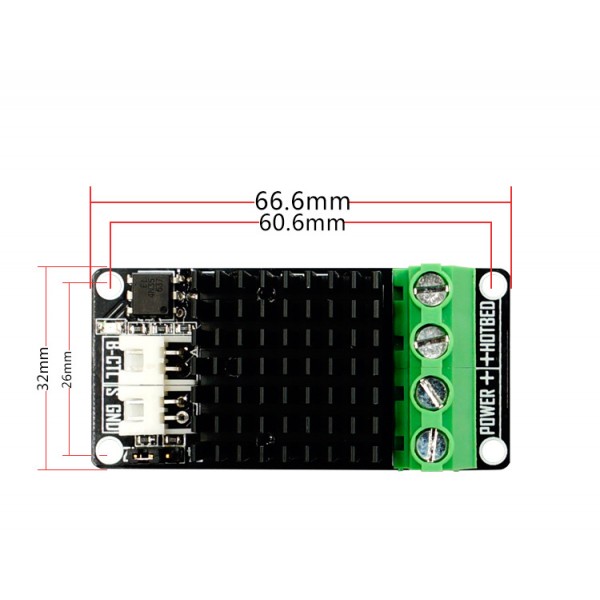

• Dimensions: See images
