Name: Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico - WS-19576
Brand: Waveshare
SKU: 004822
Price: 9 EUR
Availability: InStock

Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico

New

Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico

Availabilty: Directly available from warehouse in Eindhoven
SKU: 004822

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

10+ pieces in stock

Qty

Add to Cart

Add to wishlist

Description
Reviews

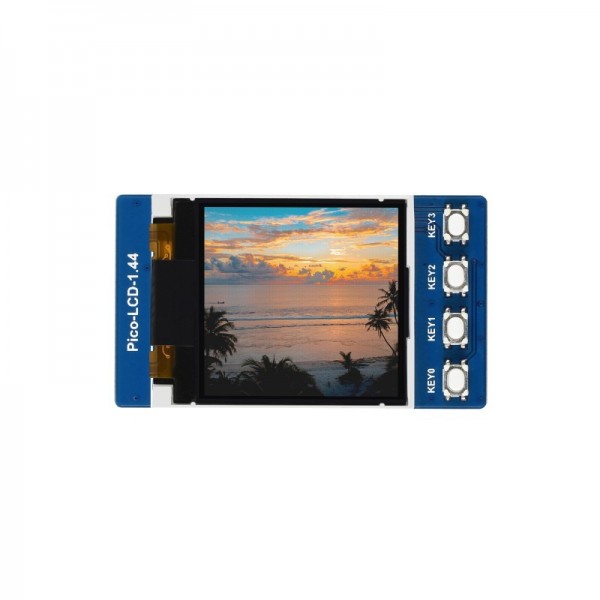

This 1.44 inch Waveshare display HAT is connected via the SPI interface of Raspberry Pi Pico. The HAT has four tactile push buttons.

Note: No Raspberry Pi Pico is included.

See the following page for more information about this product: Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico

Please login or register to review

Reviews Over Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 1.44 inch SPI TFT-LCD Display 128*128 pixels - 4 Buttons - for Raspberry Pi Pico , WS-19576 , TFT

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	19576
Features	Display Programmable button(s)
General physical appearance
Main color	Blue
Weight [g]	14
Dimension X [mm]	53
Dimension Y [mm]	30
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.2
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	ST7735S
Screen diagonal [inch]	1.44
Number of pixels long side	128
Number of pixels short side	128
Display shape	Square
Pixel colors	RGB
Switch
Switching method	Manual (sensor switch)
Switch type	Push
Number of channels/gangs	4
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x Display module
