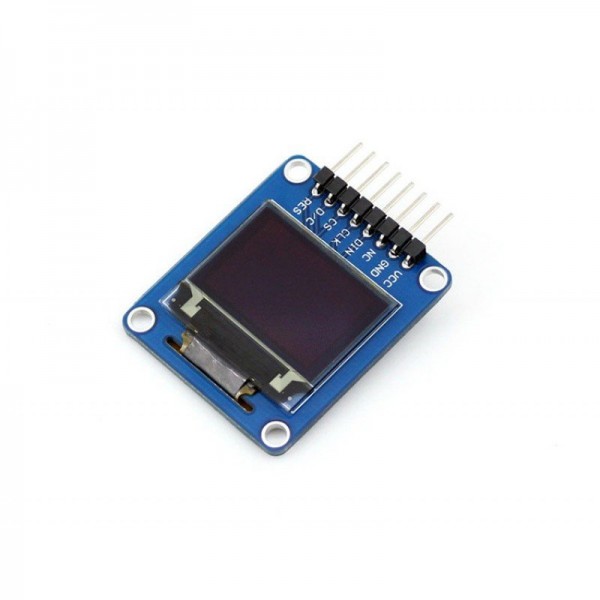

Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI

Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Black Friday 5% Korting in winkelmand
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI
  • Availabilty: Directly available from warehouse in Eindhoven
  • Model: WS-10507
  • SKU: 003558
€12.00
Ex Tax: €9.92

With this display for Arduino, Raspberry Pi, STM32, or other microcontroller, images and/or animations can be displayed.

See the following page for more information: 0.95 inch SPI RGB OLED (A) Display Module

Please login or register to review

Reviews Over Waveshare 0.95 inch RGB OLED (A) Display - 96*64 Pixels - SPI

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 10507
Features Display
General physical appearance
Main color Blue
Weight [g] 7
Mounting options Pin headers
Mounting hole(s)
Dimension X [mm] 37
Dimension Y [mm] 32
Diameter mounting hole(s) [mm] 3.0
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Display
Type OLED
Driver SSD1331
Screen diagonal [inch] 0.95
Number of pixels long side 96
Number of pixels short side 64
Display shape Rectangular
Pixel colors RGB
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x Display module
