Name: Waveshare L76B GNSS Module - for Raspberry Pi Pico - WS-20072
Brand: Waveshare
SKU: 004750
Price: 16.5 EUR
Availability: InStock

Waveshare L76B GNSS Module - for Raspberry Pi Pico

New

Waveshare L76B GNSS Module - for Raspberry Pi Pico

Availabilty: Directly available from warehouse in Eindhoven
SKU: 004750

Based on 0 review(s) - Write a review

€16.50

Ex Tax: €13.64

Only 6 pieces in stock

Qty

Add to Cart

Add to wishlist

Description
Reviews

This GNSS/GPS module is easy to use as a HAT in combination with a Raspberry Pi Pico.

Note: No Raspberry Pi Pico is included.

See the following page for more information about this product: Waveshare L76B GNSS Module - for Raspberry Pi Pico

Please login or register to review

Reviews Over Waveshare L76B GNSS Module - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare L76B GNSS Module - for Raspberry Pi Pico , WS-20072 , Modules

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20072
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	RTC

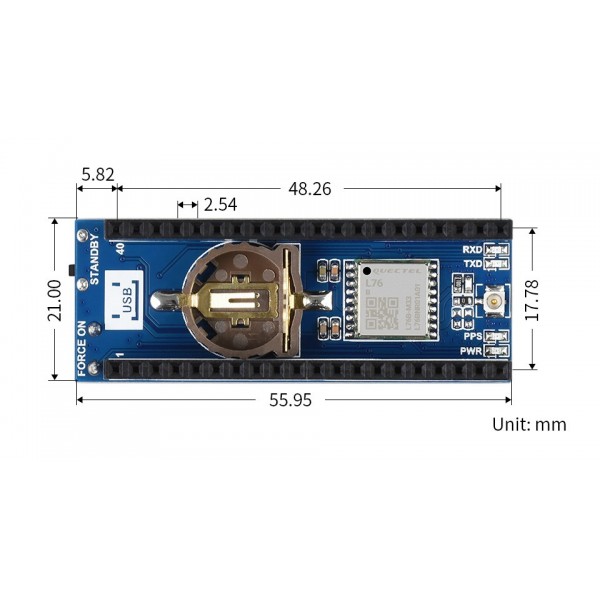

General physical appearance
Main color	Blue
Dimension X [mm]	56
Dimension Y [mm]	21
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Default baudrate	9600
Wireless communication
Interface(s)	GNSS
GNSS chip/SoC	L76B
Supported GNSS systems	GPS Beidou
Maximum GNSS position accuracy [m]	2.5
Maximum GNSS update rate [Hz]	10
RTC
RTC chip	L76B
Back-up battery	Optional
Battery holder
Suitable battery form factor	Button cell 1220
Connectors
Power supply connector(s)	Pin header female (2.54mm) Pin header male (2.54mm)
IO-connector(s)	Pin header female (2.54mm) Pin header male (2.54mm)
GNSS antenna connector	IPEX/uFL male
Package contents
Package contents	1x GNSS module 1x uFL to SMA adapter 1x SMA antenna
