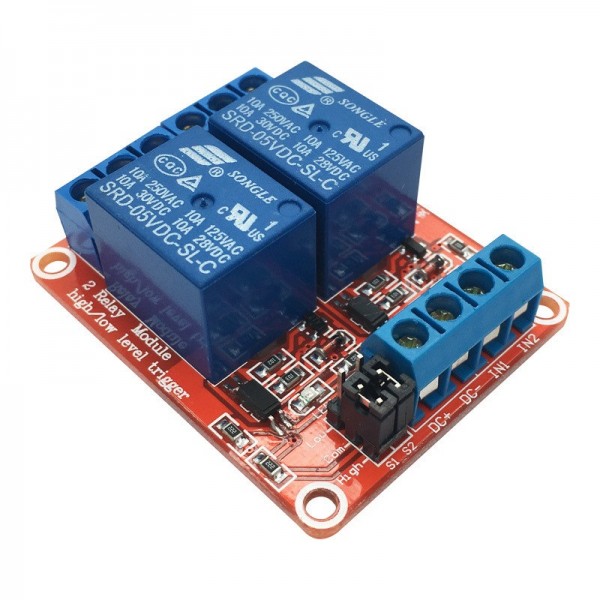

5V Relay 2-Channel High-active or Low-active

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

An easy to use relay module that can be set to high- or low-active.

Pinout:

Please login or register to review

This product has 0 review(s) in total.

Tags: 5V Relay 2-Channel High-active or Low-active , 5VREL2HL , Relays

General
Brand	No brand
Features	Electric switch
General physical appearance
Main color	Red
Weight [g]	27
Dimension X [mm]	50
Dimension Y [mm]	41
Dimension Z [mm]	19
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum recommended supply current [A]	0.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Maximum IO-pin sink current [mA]	6
Communication
Hardware interface(s)	Digital (low-active) Digital (high-active) (adjustable with jumpers)
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	2
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switch resistance [Ω]	0.1
Maximum switching current per channel (resistive load) [A]	10
Current per engaged relay [mA]	70
Connectors
Power supply connector(s)	Screw terminal
IO-connector(s)	Screw terminal
Switch connector(s)	Screw terminal
Package contents
Package contents	1x 5V Relay 2-Channel High-active or Low-active
