Light slot Sensor Module

Availability: Directly available from warehouse in Eindhoven
SKU: 000386

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €2.50

20 or more €2.25

50 or more €2.00

100 or more €1.75

150 or more €1.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

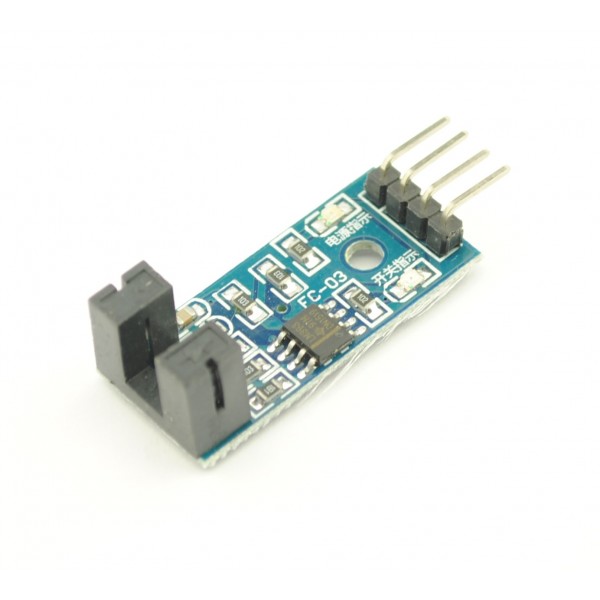

This light sensor has a small area in which the light is sent to a phototransistor.
The phototransistor responds accordingly when the light is transmitted. This means that this module can detect whether something is in the light slot or not.

Note: A0 is not used on this module

Please login or register to review

Reviews Over Light slot Sensor Module

Average Rating:

This product has 0 review(s) in total.

Tags: Light slot Sensor Module , LIGHTSLOTSENSOR , Light slots

Specifications

General
Features	Object detection sensor
General physical appearance
Main color	Blue
Weight [g]	2
Dimension X [mm]	31
Dimension Y [mm]	14
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
Object detection sensor
Type	IR
Detection type	Optical interruption
Maximum measuring range [cm]	0.5 (width light slot)
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Light slot sensor module
