M5Stack Roller485 Unit with BLDC motor

Availability: Directly available from warehouse in Eindhoven
SKU: 006633

Based on 0 review(s) - Write a review

€47.00

Ex Tax: €38.84

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

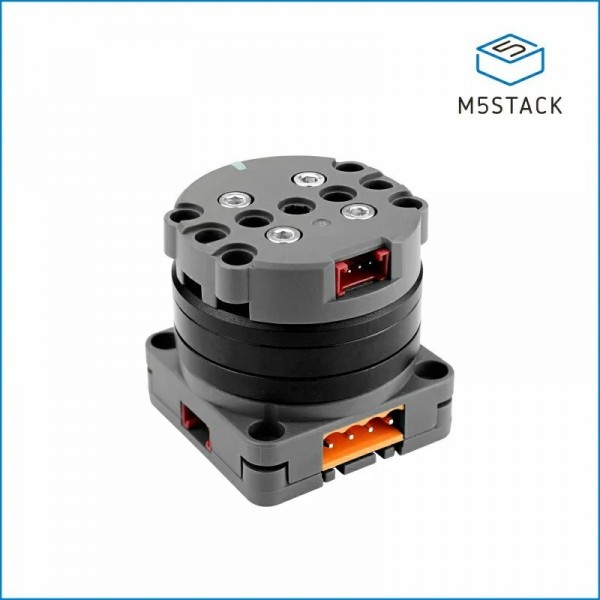

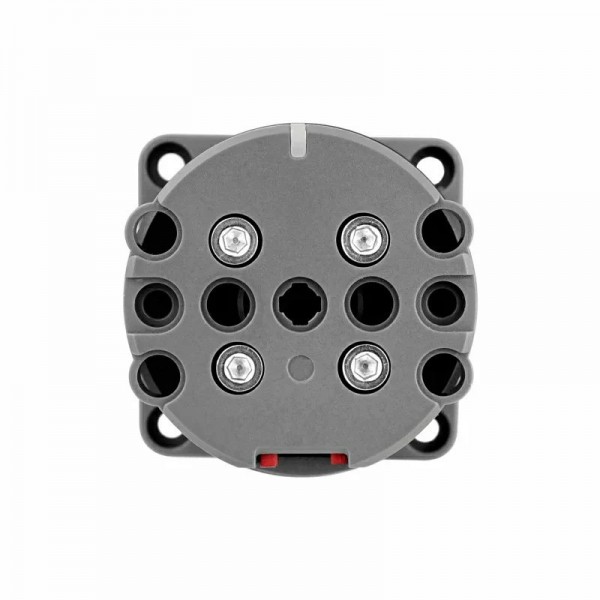

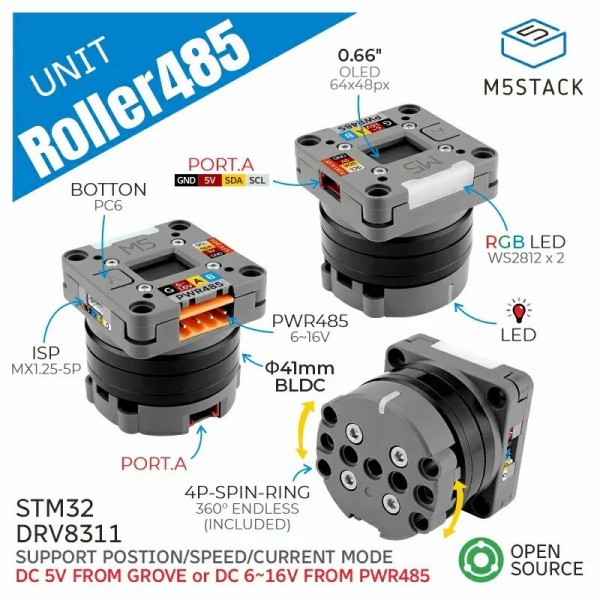

The Roller485 Unit is a BLDC motor with integrated control, which can rotate 360°. The module contains a microcontroller that can communicate via I2C or RS485. This in turn communicates with the motor driver, encoder, display and digital LEDs. The rotating part is equipped with a connector for connecting additional units via a slip ring.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Roller485 Unit with BLDC motor

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Roller485 Unit with BLDC motor , M5STACK-U182 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U182
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Motor driver Display Motor Enclosure Rotary encoder Digital LED(s)
General physical appearance
Main color	Gray/silver
Weight [g]	83
Dimension X [mm]	40
Dimension Y [mm]	40
Dimension Z [mm]	40
Mounting options	Screw thread LEGO (compatible) holes
Thread size	M3
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5 (via Grove) 6 (via HT3.96-4P)
Maximum supply voltage [V DC]	16 (via HT3.96-4P) 5 (via Grove)
Minimum IO-pin input voltage [V]	3.3 (Grove)
Maximum IO-pin input voltage [V]	3.3 (Grove)
IO-pin output voltage [V]	3.3 (Grove)
Communication
Hardware interface(s)	I2C RS485
Isolated communication	No
Default I2C address	0x64
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	5.1
RS485 chip	SIT3088E
Display
Type	OLED
Screen diagonal [inch]	0.66
Number of pixels long side	64
Number of pixels short side	48
Display shape	Rectangular
LED
LED color	RGB
Number of LEDs	2
Rotary encoder
Encoder chip	TLI5012B E1000
Encoder type	Incremental
Encoder technology	Magnetic field orientation
Motor driver
Type	Driver
Driver chip	DRV8311H
Direction of rotation	Bi-directional
Safety features	Temperature Undervoltage Overcurrent
Actuator
Actuator type	Brushless DC motor
Maximum holding torque [N.m]	0.065 (@16V)
Maximum speed [RPM]	2100 (with 50g load)
Connectors

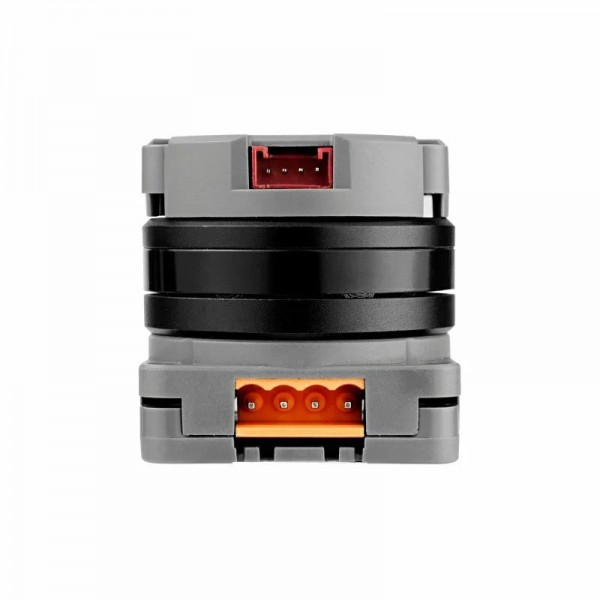

Power supply connector(s)	HY2.0 (Grove) male Detachable block male (HT3.96)
IO-connector(s)	HY2.0 (Grove) male Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents

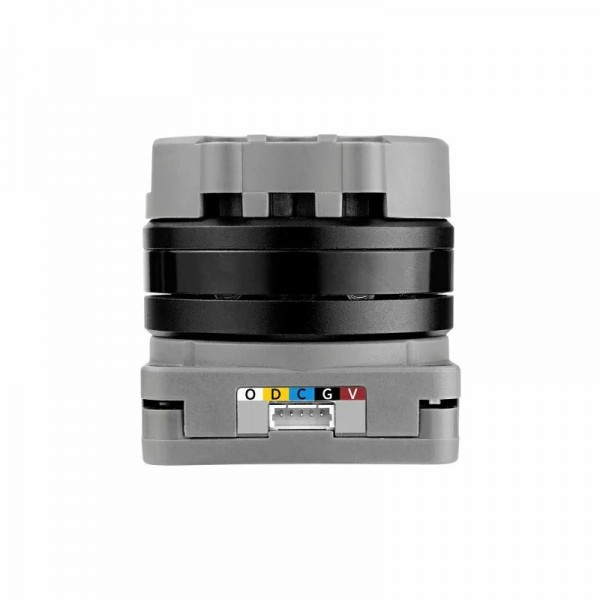

Package contents	1x Roller485 Unit 1x HT3.96R-4P plug 2x HY2.0-4P grove cables (5cm) 6x Friction pins 1x Flange 1x Bracket 1x Hex key (2.5mm) 1x Hex key (2mm) 6x M3 nuts 1x Screw set 1x Single-end terminal wire 5P debugging cable
