Name: M5Stack CamS3 Unit - ESP32-S3 - OV2640 - M5STACK-U174
Brand: M5Stack
SKU: 005816
Price: 15 EUR
Availability: Discontinued

M5Stack CamS3 Unit - ESP32-S3 - OV2640

Discontinued

M5Stack CamS3 Unit - ESP32-S3 - OV2640

Availability: Discontinued
SKU: 005816

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

Not in stock

Description
Reviews

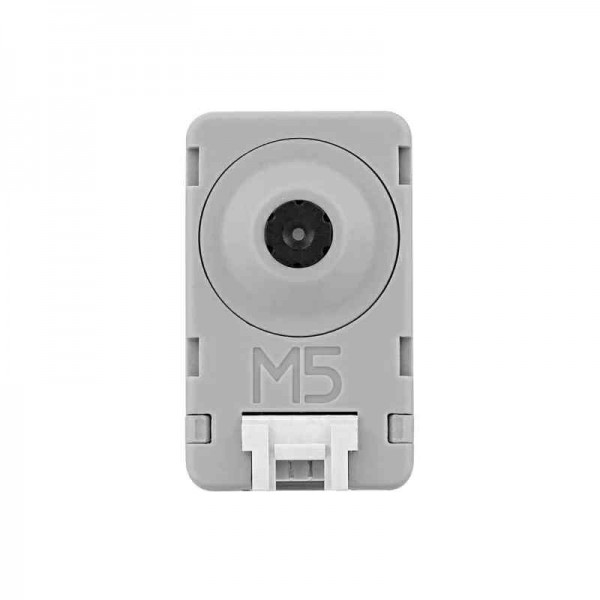

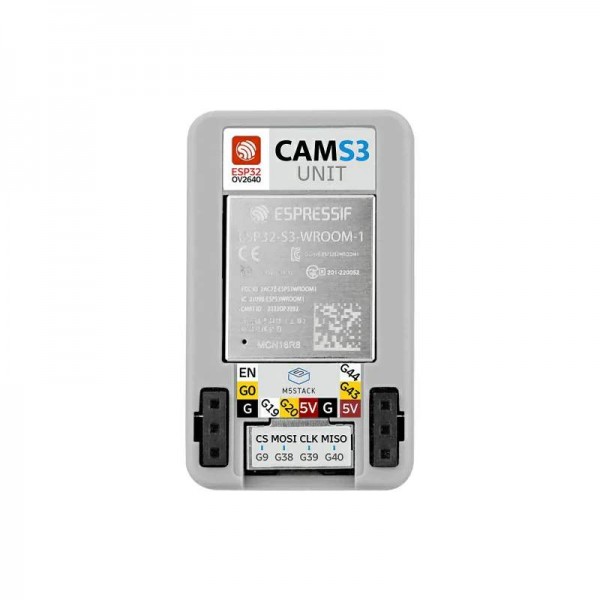

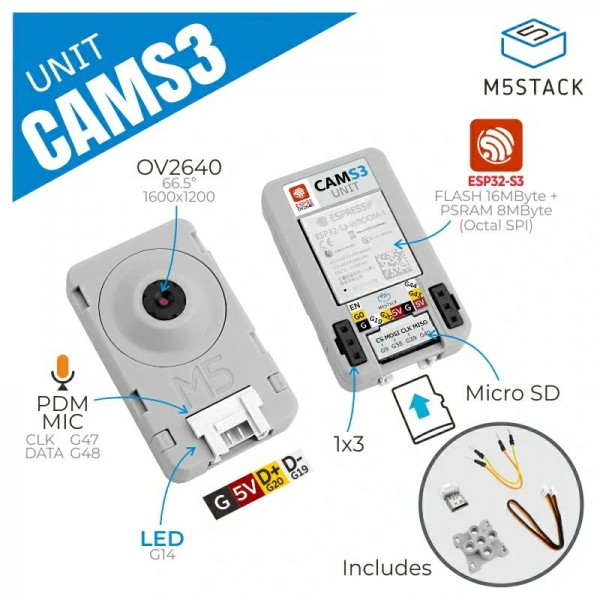

The CamS3 Unit from M5Stack is a compact camera unit based on the ESP32-S3 chipset. The unit features Wi-Fi and Bluetooth, a microphone and a camera. The unit can be expanded with extra storage space via the MicroSD card slot. The unit can be programmed via the Grove port (Grove to USB-C adapter is included), or via the pinheaders.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack CamS3 Unit - ESP32-S3 - OV2640

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack CamS3 Unit - ESP32-S3 - OV2640 , M5STACK-U174 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U174
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Camera Microcontroller SD-card adapter Enclosure Microphone LED
General physical appearance
Main color	Gray/silver
Weight [g]	9

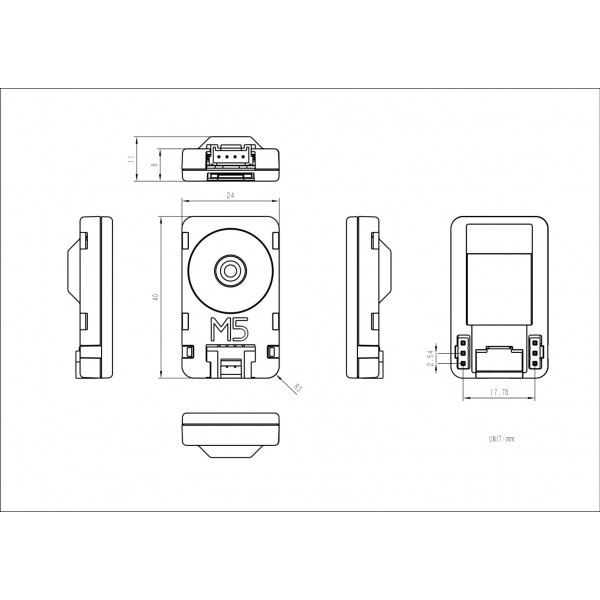

Dimension X [mm]	40
Dimension Y [mm]	24
Dimension Z [mm]	11
Mounting options	LEGO (compatible) holes Click (LEGO adapter included)
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-S3
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	512
PSRAM [MB]	8
Flash memory [MB]	16
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	5
Maximum available hardware PWM channels	5
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Supported SD card size	Micro SD
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-S3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-S3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Scanner/camera
Type	Camera
Sensor(chip)	OV2640
Lense type	Normal
Number of pixels long side	1600
Number of pixels short side	1220
Maximum viewing angle (diagonal) [°]	66.5
Sound sensor
Sensor (chip(s))	MSM261D4030H1CPM
Type	Microphone
Sensor technology	MEMS
Sensitivity [dB]	-26
SNR [dB]	64
Connectors
Power supply connector(s)	HY2.0 (Grove) male Pin header female (2.54mm)
IO-connector(s)	HY2.0 (Grove) male Pin header female (2.54mm)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x CamS3 Unit 1x Grove to USB-C adapter 2x Male-Male jumper cable 1x Grove cable 1x LEGO adapter
