Solenoid Push-Pull 6V 300mA - JF-0530B

This solenoid functions as an electromagnet and can retract a pin. The spring pushes the pin out by default, but the pin is pulled in when the solenoid is activated.

Specifications:

• Voltage: 6V DC
• Current: ~1600mA on 6V (only for short-term use)
• Current (max for a longer time): 300mA
• Power: 1.8W(max continuous), 9.6W(peak, short-term)
• Type: Push-Pull
• Force (maximum in end position): 5N
• Length stroke: 10mm
• Dimensions (frame):  30 x 16 x 15mm
• Dimensions (pin): 6 x 58mm
• Has two M3 mounting holes
• Cable length: ~20cm

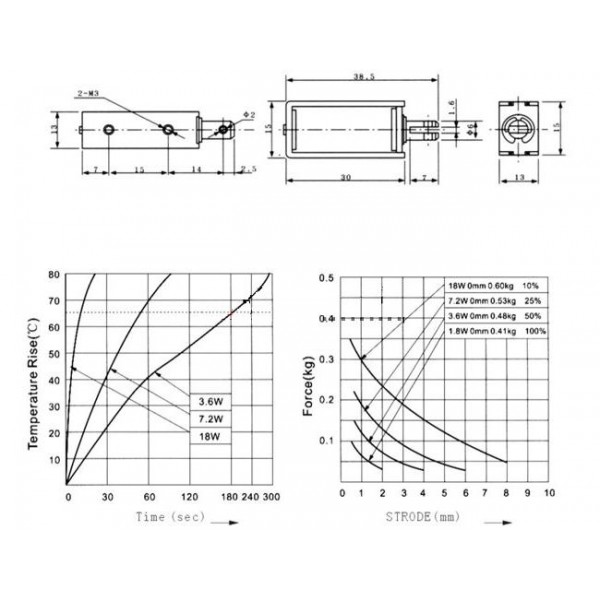

• See the images for more specifications

This solenoid has no fixed polarity so the voltage can be connected in two ways and have the same effect.

Note: We do not recommend activating the solenoid for a long time. It is intended for short-term use.

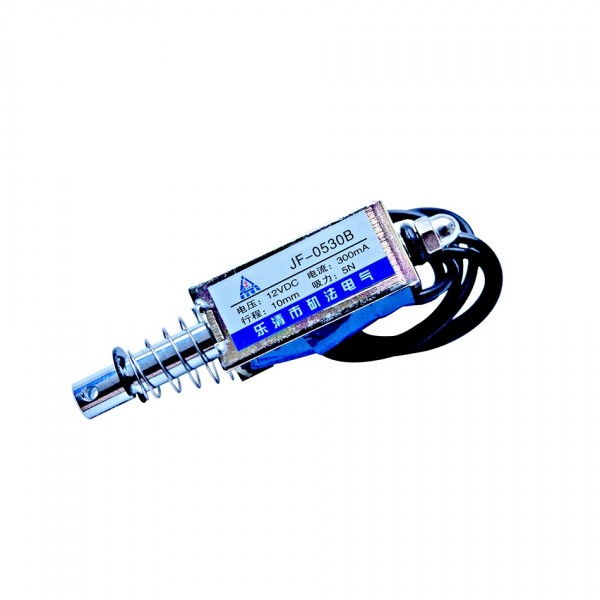

Note: The picture shows the 12V variant. However, the appearance and dimensions are identical to the 6V version.
