LilyGO T-0.99TFT - 0.99 inch TFT Display 160*40 pixels - SPI - GC9D01N

Based on 0 review(s) - Write a review

€5.50

Ex Tax: €4.55

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

A small display from LilyGO.

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO T-0.99TFT - 0.99 inch TFT Display 160*40 pixels - SPI - GC9D01N , LILYGO-H552 , TFT

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H552
Features	Display
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	32
Dimension Y [mm]	8.6
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	TFT
Driver	GC9D01N
Screen diagonal [inch]	0.99
Number of pixels long side	160
Number of pixels short side	40
Display shape	Rectangular
Pixel colors	RGB
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) JST-GH (compatible) male
IO-connector(s)	Through hole solder pin(s) (2.54mm) JST-GH (compatible) male
Package contents

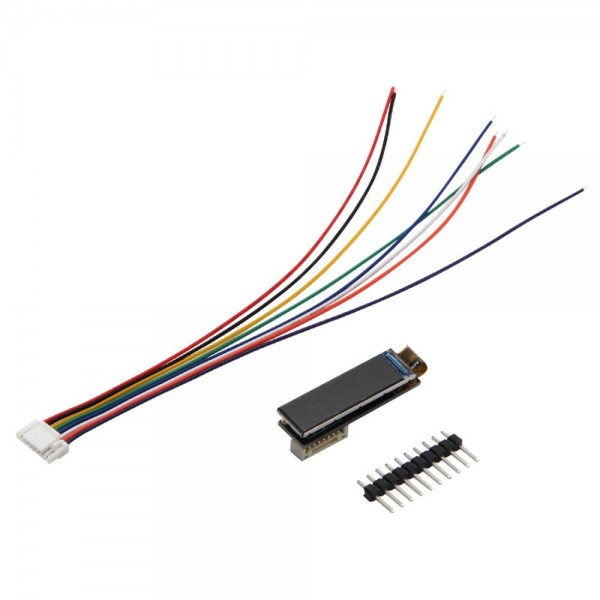

Package contents	1 X T-0.99TFT 1 X Male pin header 10p 1x JST-GH female 10p to loose wires cable
