Name: WT32-SC01 ESP32 Development Board - with 3.5 inch IPS Capacitive Touchscreen - WT32-SC01
SKU: 004340
Price: 34 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

WT32-SC01 ESP32 Development Board - with 3.5 inch IPS Capacitive Touchscreen

On request

WT32-SC01 ESP32 Development Board - with 3.5 inch IPS Capacitive Touchscreen

Availability: On request
SKU: 004340

Based on 1 review(s) - Write a review

€34.00

Ex Tax: €28.10

Qty

Add to Cart

Add to wishlist

Not in stock

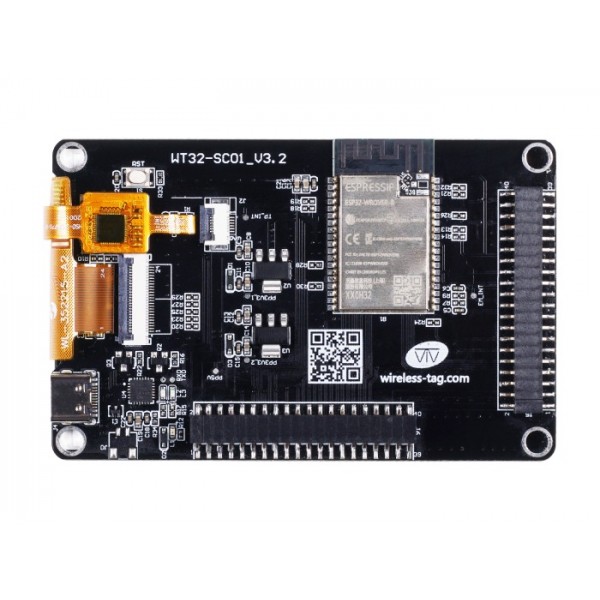

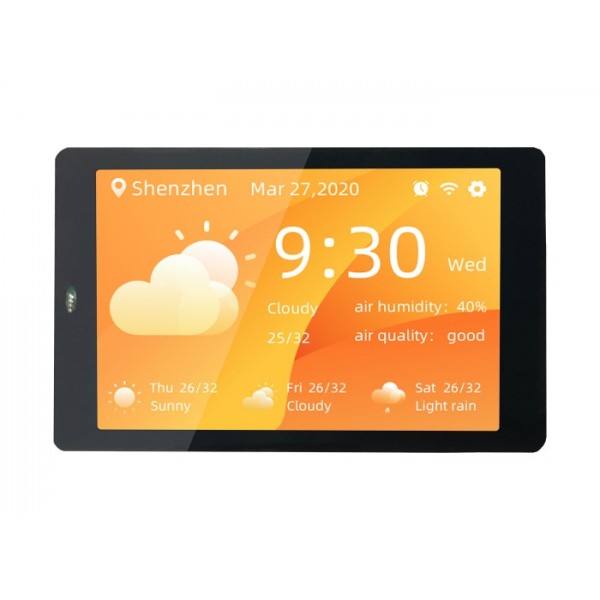

This WT32-SC01 development board is based on the ESP32 and has a touchscreen display.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over WT32-SC01 ESP32 Development Board - with 3.5 inch IPS Capacitive Touchscreen

Average Rating:

This product has 1 review(s) in total.

Datasheet: 004340_WT32-SC01-datasheet (1).pdf

Schematic: 004340_WT32-SC01-chinese-with-schematic (1).pdf

Tags: WT32-SC01 ESP32 Development Board - with 3.5 inch IPS Capacitive Touchscreen , WT32-SC01 , With Bluetooth

Specifications

General
Brand	Wireless-tag
Manufacturer model/SKU	WT32-SC01
Model revision	V3.2 or V3.3
Features	Display Microcontroller Touchscreen
General physical appearance
Main color	Black
Weight [g]	57
Dimension X [mm]	91
Dimension Y [mm]	58
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	20
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32
Maximum clock frequency [MHz]	240
Number of cores	2
Internal memory
SRAM [KB]	520
PSRAM [MB]	8
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC DAC GPIO USB CDC
Number of IO-pins	23
Maximum available hardware PWM channels	16
Maximum available analog input pins (ADC)	16
Maximum available analog output pins (DAC)	2
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	2
USB to serial converter	CP2104
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32
Bluetooth version	4.2
Supported Bluetooth standard(s)	LE Classic
Display
Type	IPS
Driver	ST7796S
Screen diagonal [inch]	3.5
Number of pixels long side	480
Number of pixels short side	320
Pixel colors	RGB
Touchscreen
Touchscreen controller	FT6336U
Touch type	Capacitive
Connectors
Power supply connector(s)	USB-C female Pin header female (2.00mm)
IO-connector(s)	USB-C female Pin header female (2.00mm)
Pin distance [mm]	2.00
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x WT32-SC01 1x USB-A male to USB-C male cable
