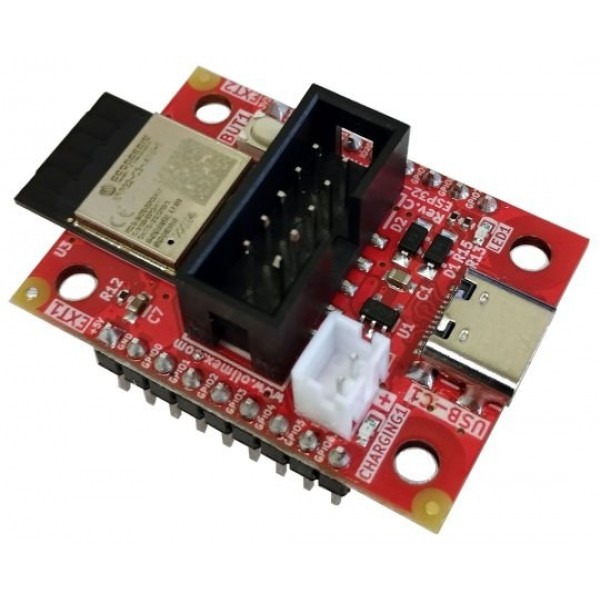

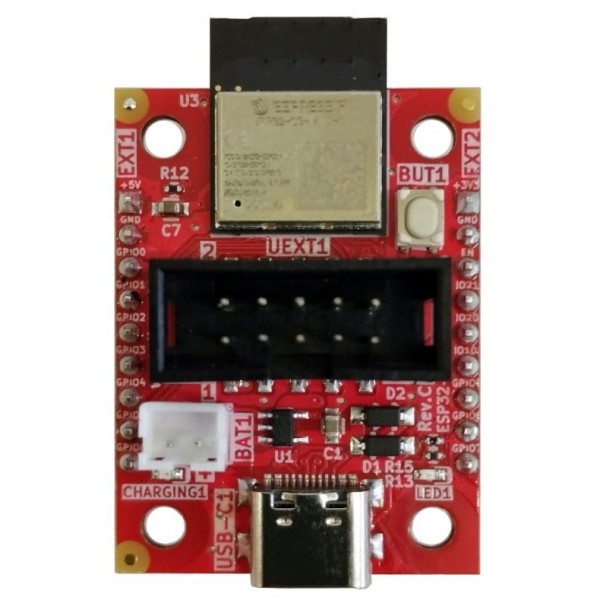

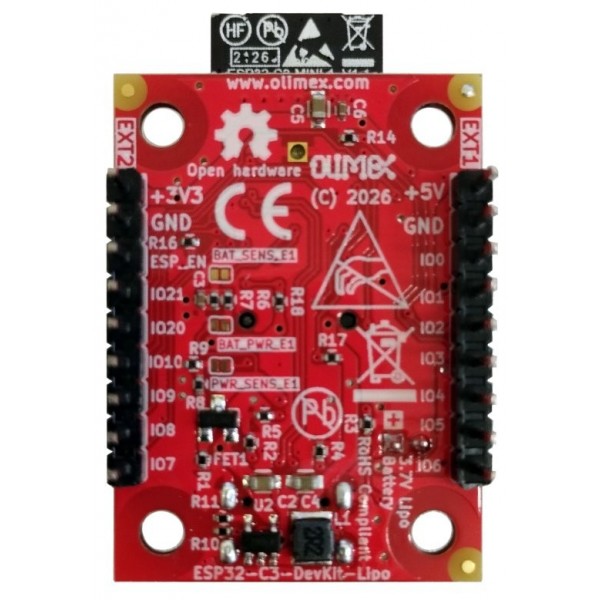

Olimex ESP32-C3-DevKit-Lipo
- Beschikbaarheid: Direct leverbaar uit magazijn in Eindhoven
- SKU: 007945
€7,75
Excl. BTW: €6,41
Een development board van Olimex op basis van een ESP32-C3 microcontroller van Espressif. Door de ingebouwde USB connector is deze gemakkelijk te programmeren. Voor extra connectiviteit heeft het board meerdere draadloze communicatie interfaces (o.a. Wi-Fi/Bluetooth). Tot slot heeft het board een batterij aansluiting waar een Li-Po/Li-ion batterij (niet meegeleverd) op aangesloten kan worden, welke via het board ook opgeladen kan worden.
Zie de volgende pagina voor meer informatie: GitHub
Tags:
Microcontroller Boards
, Met Bluetooth
, Olimex ESP32-C3-DevKit-Lipo
, 007945
, Olimex
, ESP32-C3-DevKit-Lipo
, Batterijlader
, Microcontroller (MCU)
, I2C
, I2S
, SPI
, UART
, PWM
, ADC
, GPIO
, USB CDC
, Wi-Fi
, Bluetooth
Specificaties
| Algemeen | |
| Merk | Olimex |
| Fabrikant model/SKU | ESP32-C3-DevKit-Lipo |
| Model revisie | C |
| Normconformiteit | RoHS |
| Features | Batterijlader Microcontroller (MCU) |
| Algemene fysieke kenmerken | |
| Hoofdkleur | Rood |
| Gewicht [g] | 8 |
| Afmeting X [mm] | 38 |
| Afmeting Y [mm] | 28 |
| Montagemogelijkheden | Pinheaders Montagegat(en) |
| Vormfactor | Module (algemeen) |
| Algemene elektrische eigenschappen | |
| Minimale voedingsspanning [V DC] | 5 |
| Maximale voedingsspanning [V DC] | 5 |
| Minimale IO-pin ingangsspanning [V] | 3.3 |
| Maximale IO-pin ingangsspanning [V] | 3.3 |
| IO-pin uitgangsspanning [V] | 3.3 |
| Maximale IO-pin source stroom [mA] | 40 |
| Maximale IO-pin sink stroom [mA] | 28 |
| MCU | |
| Fabrikant | Espressif |
| Chipserie | ESP32-C3 |
| Maximale klokfrequentie [MHz] | 160 |
| Aantal cores | 1 |
| Intern geheugen | |
| SRAM [KB] | 400 |
| PSRAM [MB] | 0 |
| Flash geheugen [MB] | 4 |
| EEPROM type | Geëmuleerd |
| Communicatie | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC |
| Beschikbare GPIO pinnen | 0, 1, 2, 3, 4, 6, 7, 8, 9, 10, 20, 21 |
| Aantal IO-pinnen | 12 |
| Maximaal beschikbare hardware PWM kanalen | 6 |
| Maximaal beschikbare analoge ingangspinnen (ADC) | 5 |
| Maximaal beschikbare analoge uitgangspinnen (DAC) | 0 |
| Maximaal beschikbare hardware UART interfaces | 2 |
| Maximaal beschikbare hardware I2C interfaces | 1 |
| Maximaal beschikbare hardware SPI interfaces | 1 |
| USB naar serieel converter | Geïntegreerd in microcontroller |
| Draadloze communicatie | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-C3 |
| Wi-Fi frequentie [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-C3 |
| Bluetooth versie | 5.0 |
| Ondersteunde Bluetooth standaard(en) | LE |
| Batterijcircuit | |
| Batterij laadchip/SoC | TP4054 |
| Ondersteunde batterij chemie | Li-Po Li-ion |
| Maximale laadspanning [V] | 4.2 |
| Maximale laadstroom [mA] | 100 |
| Instelbare laadstroom | Nee |
| Protectiecircuit | Nee |
| Connectoren | |
| Voedingsconnector(en) | USB-C female Pinheader male (2.54mm) |
| IO-connector(en) | USB-C female Pinheader male (2.54mm) |
| Batterijconnector(en) | JST-PH (compatible) male |
| Wi-Fi/Bluetooth antenneconnector | Ingebouwde antenne |
| Inhoud verpakking | |
| Inhoud verpakking | 1x ESP32-C3-DevKit-Lipo |
