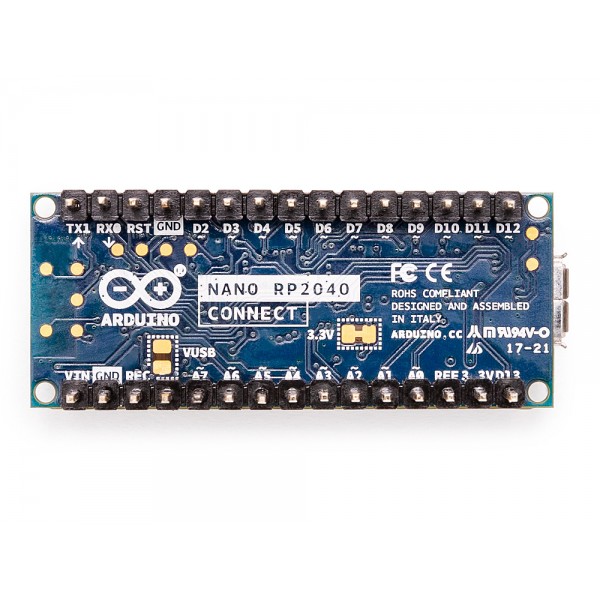

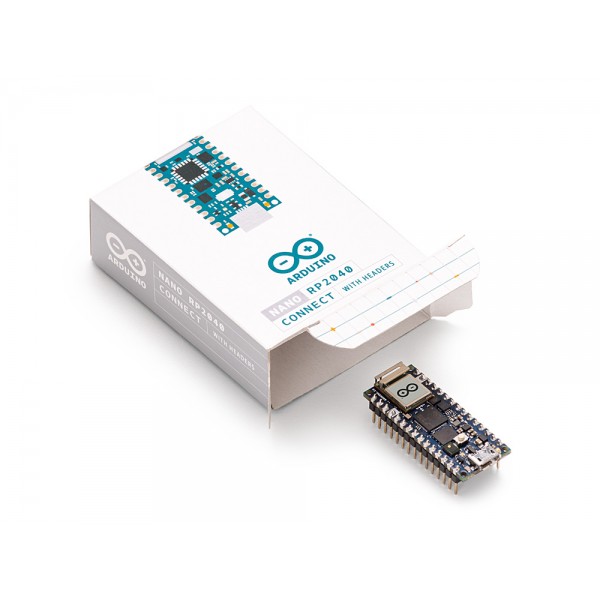

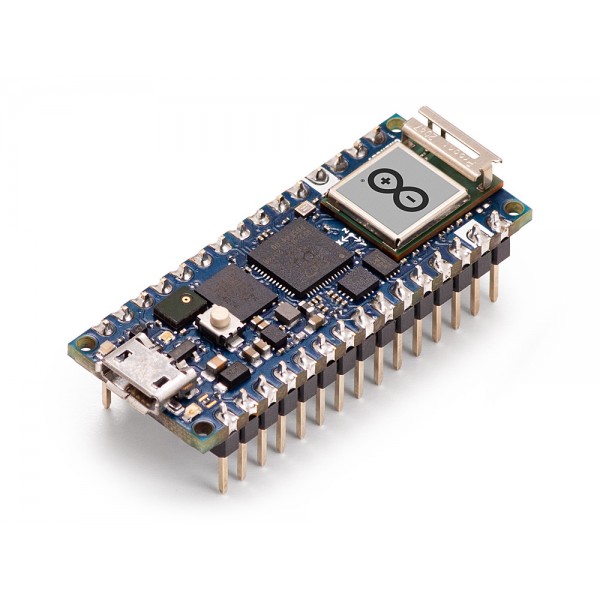

Arduino Nano RP2040 Connect
- Beschikbaarheid: Direct leverbaar uit magazijn in Eindhoven
- SKU: 003436
€25,00
Excl. BTW: €20,66
De Nano RP2040 Connect is een module met de vorm van de bekende Arduino Nano, maar met de RP2040 microcontroller van Raspberry Pi. Daarnaast heeft deze module ook een u-blox NINA-W102 (voor Wi-Fi en Bluetooth) aan boord wat dit een van de weinige "connected" RP2040 boards maakt.
Zie de volgende pagina voor meer informatie: Wiki
Tags:
Microcontroller Boards
, Arduino Compatible
, Arduino Nano RP2040 Connect
, 003436
, Arduino
, ABX00053
, Microcontroller (MCU)
, Microfoon
, Acceleratiesensor
, Gyroscoop
, I2C
, SPI
, Native USB
, UART
, PWM
, ADC
, GPIO
, PIO
, USB CDC
, Wi-Fi
, Bluetooth
Specificaties
| Algemeen | |
| Merk | Arduino |
| Fabrikant model/SKU | ABX00053 |
| Normconformiteit | CE FCC RoHS |
| Minimale bedrijfstemperatuur [°C] | -40 |
| Maximale bedrijfstemperatuur [°C] | 85 |
| Features | Gyroscoop Microfoon Acceleratiesensor Microcontroller (MCU) |
| Algemene fysieke kenmerken | |
| Hoofdkleur | Blauw |
| Gewicht [g] | 6 |
| Afmeting X [mm] | 43 |
| Afmeting Y [mm] | 18 |
| Montagemogelijkheden | Pinheaders Montagegat(en) |
| Diameter montagegat(en) [mm] | 1.65 |
| Vormfactor | Module (algemeen) Nano layout/shield |
| Algemene elektrische eigenschappen | |
| Minimale voedingsspanning [V DC] | 5 |
| Maximale voedingsspanning [V DC] | 20 (via VIN) 5 (via USB) |
| Minimale IO-pin ingangsspanning [V] | 3.3 |
| Maximale IO-pin ingangsspanning [V] | 3.3 |
| IO-pin uitgangsspanning [V] | 3.3 |
| Maximale IO-pin source stroom [mA] | 12 |
| Maximale IO-pin sink stroom [mA] | 12 |
| MCU | |
| Fabrikant | Raspberry Pi |
| Chipserie | RP2040 |
| Maximale klokfrequentie [MHz] | 133 |
| Aantal cores | 2 |
| Intern geheugen | |
| SRAM [KB] | 264 |
| PSRAM [MB] | 0 |
| Flash geheugen [MB] | 16 |
| EEPROM type | Geëmuleerd |
| Communicatie | |
| Hardware interface(s) | ADC I2C PIO PWM SPI GPIO UART USB CDC Native USB |
| Beschikbare GPIO pinnen | 0, A6, A7, 1, 4, 5, 6, 7, 12, 13, 15, 16, 17, 18, 19, 20, 21, 25, 26, 27, 28, 29 |
| Aantal IO-pinnen | 22 |
| Maximaal beschikbare hardware PWM kanalen | 16 |
| Maximaal beschikbare analoge ingangspinnen (ADC) | 8 |
| Maximaal beschikbare analoge uitgangspinnen (DAC) | 0 |
| Maximaal beschikbare hardware UART interfaces | 1 |
| Maximaal beschikbare hardware I2C interfaces | 1 |
| Maximaal beschikbare hardware SPI interfaces | 1 |
| USB naar serieel converter | Geïntegreerd in microcontroller |
| Draadloze communicatie | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32 (u-blox NINA-W102) |
| Wi-Fi frequentie [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32 (u-blox NINA-W102) |
| Bluetooth versie | 4.2 |
| Ondersteunde Bluetooth standaard(en) | LE Klassiek |
| Acceleratiesensor | |
| Sensorchip/SoC | LSM6DSOX |
| Vrijheidsgraden (DOF) | 3 |
| Maximaal meetbereik [±g] | 16 |
| Gyroscoop | |
| Sensorchip/SoC | LSM6DSOX |
| Vrijheidsgraden (DOF) | 3 |
| Maximaal meetbereik [±°/s] | 2000 |
| Geluidsensor | |
| Sensor(chip(s)) | MP34DT06JTR |
| Type | Microfoon |
| Sensor technologie | MEMS |
| Connectoren | |
| Voedingsconnector(en) | Micro USB female Pinheader male (2.54mm) |
| IO-connector(en) | Micro USB female Pinheader male (2.54mm) |
| Wi-Fi/Bluetooth antenneconnector | Ingebouwde antenne |
| Inhoud verpakking | |
| Inhoud verpakking | 1x Development board |
